ML Models

Amorphic Model portal helps you create/import an AWS SageMaker model. This machine learning model object can be applied on a dataset files for prediction purposes.

Amorphic Model Overview

Create ML Model

ML Models component helps user to create an ML Model object in Amorphic to facilitate and utilize on the dataset files.

Following are the attributes required to create an Amorphic machine learning model object:

Model Creation

Model NameThis is the model name in the Amorphic portal.
DescriptionThis is the description of the ML model.
Model ResourceThere are three ways to integrate Sagemaker model with the Amorphic portal
Existing Model ResourceThis is a way to import Sagemaker Marketplace subscribed model in the Amorphic Portal. In order to import a model from Sagemaker marketplace, raise a request to the Admin. The admin will create a support ticket for the AWS Marketplace model using Amorphic team will make sure the respective model is available to select.
Artifact LocationThis is a way to upload your sagemaker model file directly from an Amorphic S3 location. Amorphic users can use Amorphic Notebooks to create a model in a Amorphic S3 location. Please refer to the Notebook section for the respective bucket details.
Select fileThis is a way to upload a sagemaker model tar file directly to the Amorphic portal. Upon selecting this option you can upload any model tar or tar.gz file directly into the Amorphic portal.

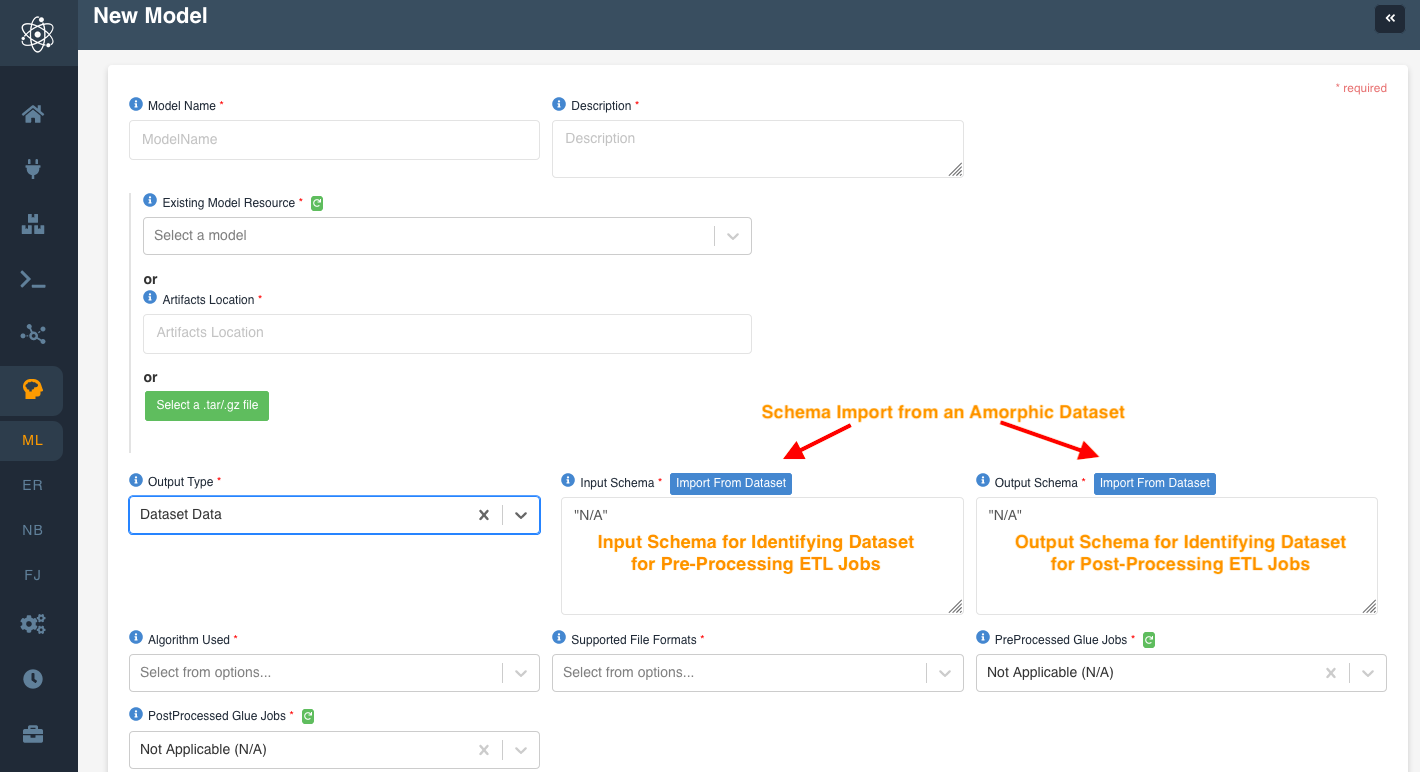

Output TypeYou have two options - Dataset Data or Metadata. Select Dataset data when the requirement is to run the model on a Dataset file. Select Metadata, when you would like to view "AI/ML Results" ie. metadata on a dataset files (explained later). Most of the time you would want to use Dataset data.
![Model Output Type Dataset](

Dataset Data would require two additional inputs - Input and Output
Input SchemaThis is the schema used to identify the schema for the Dataset on which the pre-processing ETL job or the model is to be run.
Output SchemaThis is the schema used to identify the schema for the Dataset on which the post-processing job or the model output will be saved.
Both the schema should have the same following format matching the
respective Datasets:

"type": "Date",
"name": "CheckoutDate",
"Description": "description"
"type": "String",
"name": "MajorProdDesc",
"Description": "description"
"type": "Double",
"name": "counts",
"Description": "description"

:::info Note
You can import the schema of an Amorphic dataset using the "Import from Dataset" functionality
Algorithm UsedThe platform currently supports all the major AWS Sagemaker models
Supported file formatsSelect the respective file type for predictions. If you require a file format other than the available format, then select the others file type. It will default to no file type required for batch prediction purposes. Note: if a model is selected as “Others” file type, then it can only be run on a “Others” file type Dataset.
Preprocess Glue JobSelect the pre-processing ETL jobs created using Amorphic ETL functionality.
Postprocess Glue JobSelect the post-processing ETL jobs created using Amorphic ETL functionality.

Apply Amorphic Model

Apply Model

Once an Amorphic model object is created, you can run a model on a Dataset files in the Amorphic portal by going through the following steps:

  1. Select a Dataset in the Amorphic portal.
  2. Go to the “Files” tab and select the file on which you want to run the model.
  3. Click on the Top Right options for the file.
  4. Click on “Apply ML”
  5. Select the ml-model from the model dropdown. All Amorphic model objects that match the corresponding input schema of Datasets will be available to select.
  6. Select the required instance types. Note: certain aws marketplace subscribed models run on specific instance family type.
  7. Select the Target Dataset. The Datasets matching the output schema of the Amorphic model object will be available for selection.
  8. Click on “Submit”

Apply Model 2

ML Model

View ML Model

To view the details of a ML Model, click the View Details link for the respective ML Model.

Following details will be displayed in the ML Model details page based on the type of creation:

View ML Model

Authorized Users

This tab shows the list of users authorized to perform operations on the ML Model. The owner, user who created or have owner access to the model, can provide model access to any other user in the system.

There are two type of access types:

Access TypeDescription
OwnerThis User has permissions to edit the model and provide access to other user for the model.
Read-onlyThis user has limited permission to model, such as view the details of the selected model.

Authorized Groups

This tab shows the list of groups authorized to perform operations on Ml Model. A group is a list of users given access to a resource. Groups are created by going to User Profile -> Profile & Settings --> Groups

There are two type of access types:

Access TypeDescription
OwnerThis group of users has permissions to edit the resources and provide access to other user/groups for the resources.
Read-onlyThis group has limited permission to resources, such as view the details.

Delete ML Model

If the user has sufficient permissions to delete the ML Model then the ML Model can be deleted using the 'Delete' (trash) button on the right side.

Following image depicts how to delete the ML Model:

Delete ML Model

How ML Pipeline works in the Amorphic

The below figure shows how a typical ML pipeline of Amorphic platform looks like. During the Amorphic model object creation process, the pre-processing and post-processing ETL job functionality provides a way to drag and drop ETL workflows for a smooth user access.

Model Pipeline
